The day begins with dimpling, then sanding and to finish all the parts are primed. Tomorrow I'll begin the assembly.

Three hours to deburr holes and edges.

The flaps are dissassembled, the spars need now to be countersunk. The spar is 56" long and holds 57 holes. On the picture, the left hole is before countersinking, the center after and in the right one I put a rivet just to check depth. I left the hing in place to guide the pilot of he countersink bit.

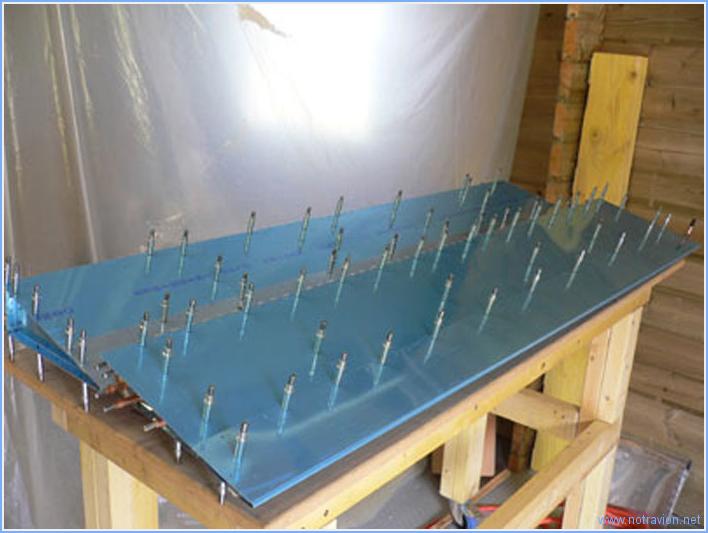

The two flaps are assembled and match drilled. I was careful with the hinge as it sometimes seems to be a problem when final assembling with the wing. Now everything gets unassembled for the usual drill : deburrind, dimpling and priming.

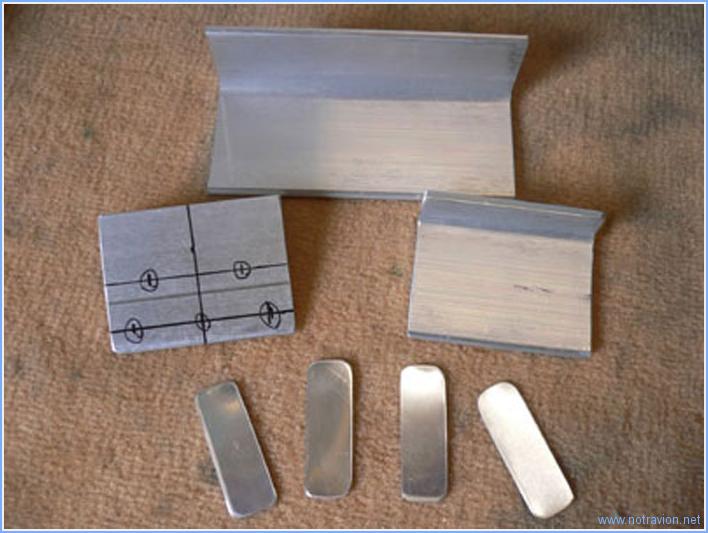

Some small parts have to be fabricated for the flaps. On the picture you can see the four shims made from aluminium sheet. The two angles are cut from the stock angle visible in the upper part. Everything then gets sanded to remove the cutting marks. One of the angles is marked for drilling, some more holes will be drilled in assembly.
