11-Oct-2008
Catégorie: Empennage : Tip
































Working time on this subpart
Today :  4h (Total : 58h)

Lectures (2411)
07-Oct-2008
Catégorie: Empennage : Tip

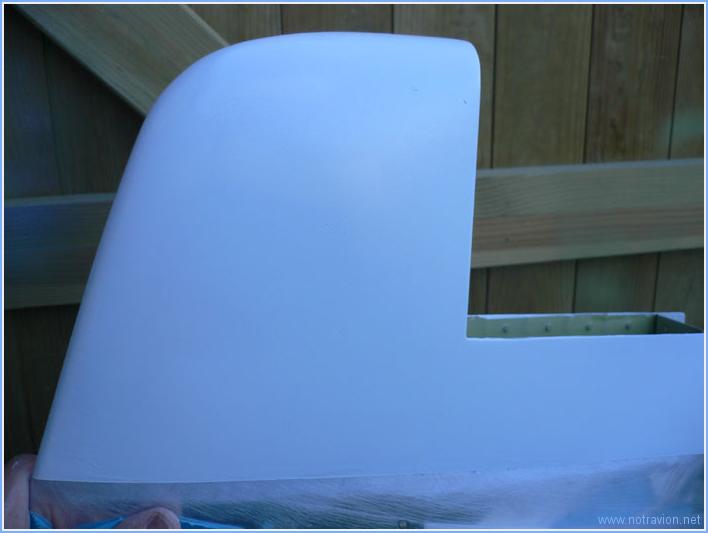

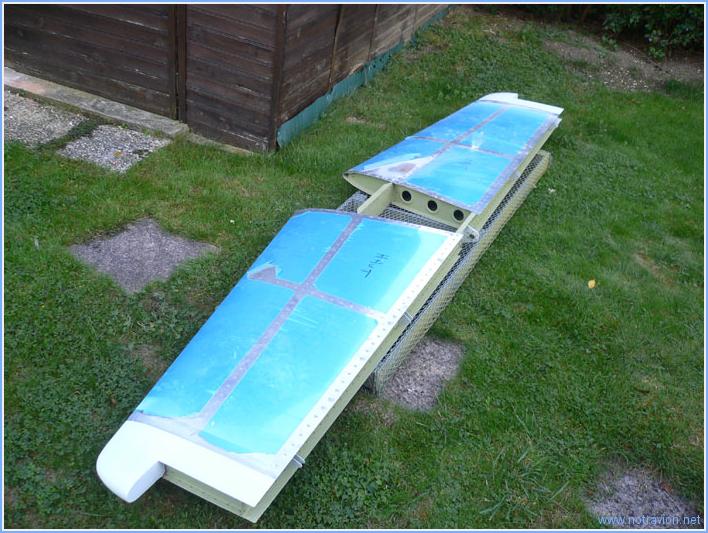

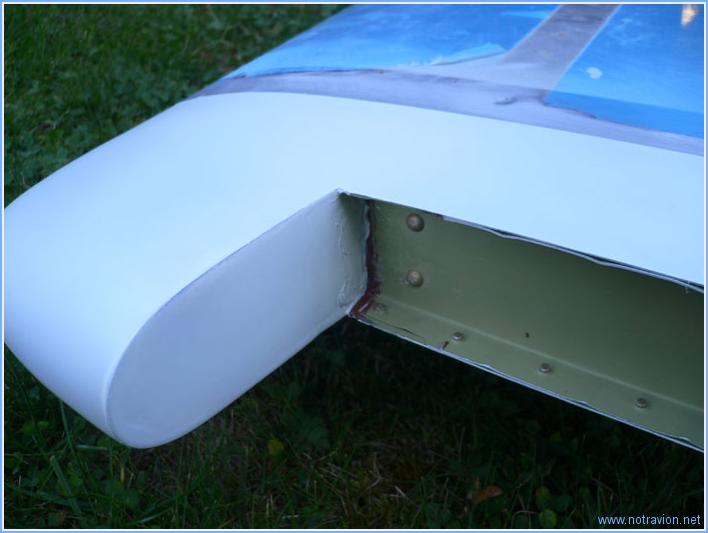

Today I had quite a bit done, the vertical stabilizer and left elevator tips are sanded and ready to be primed. So I have five tips ready to be painted.
The upper rudder tip is ready for final sanding and the lower tip got some filler again after the problem discovered yesterday.


Working time on this subpart
Today :  2h (Total : 54h)

Lectures (2442)
06-Oct-2008
Catégorie: Empennage : Tip

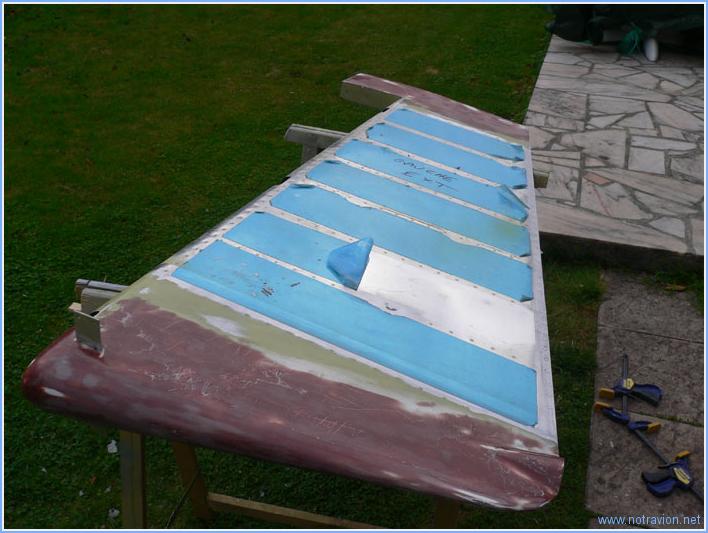

I begin by sanding the vertical stabilizer tip. I have some low spots that I filled, next sanding should not be very long and be the final sanding on this part.



Then I sand the left elevator and apply a layer of pure epoxy. One final sanding and the part should be finished.

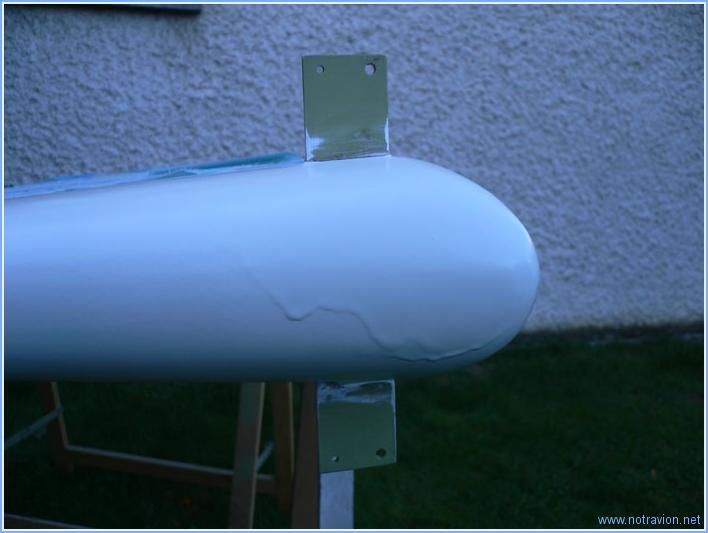

Then I sand the upper tip of the rudder, some filling had to be done, so still some work ahedad on this part. On the lower tip I fond a problem with the last epoxy layer that does flakes off. So I sand it off, more work on this part next time.




Working time on this subpart
Today :  2h (Total : 52h)

Lectures (2444)
04-Oct-2008
Catégorie: Empennage : Tip

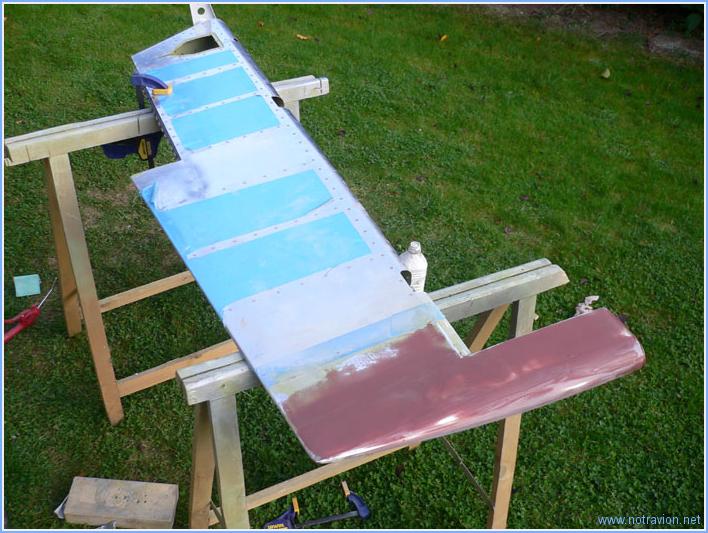

Today I wanted to final sand the two tips I had already primed. But this proved more difficult than expected as the primer came off after sanding and cleaning. So I decided to sand the whole primer and to fill again the parts that needed it. The left elevator was quite a lot of work, but the vertical stabilizer having a better finish was easir to do.


Before



After



Working time on this subpart
Today :  2h (Total : 50h)

Lectures (2529)
02-Oct-2008
Catégorie: Empennage : Tip

Worked two hours on the tips, the status is as following : two tips primed and filled again, three tips ready to be primed and two ribs that had to be filled a bit more as there were some low spots after block sanding.


Working time on this subpart
Today :  2h (Total : 48h)

Lectures (2417)
